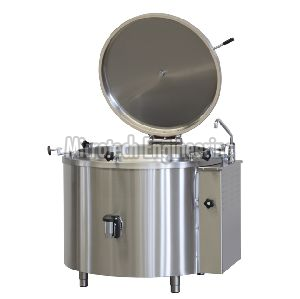

Steam Boiling Pan

Our Rapidly Growing Organization Is Offering A Wide Gamut Of Boiling Pan That Is Widely Used In Food And Pharma Industry. The Offered Pan Is Designed By Deft Professionals Of The Market Using Advanced Technology And Latest Machines With Superior Grade Basic Material. In Line With Industry Set Standard, We Provide The Entire Range In Various Specifications As Per The Requirement Of Our Clients. In Additionally, Clients Can Avail The Entire Range From Us At Market Leading Rates.

Features

• Optimum Functionality
• Long Working Life
• Minimum Maintenance


Specifications

• Steam Pressure - Up To 4 Bar
• Capacity - Up To 500 Liters
• Size - Customized

The Following Type Of Boiling Pans / Kettles Are Manufactured

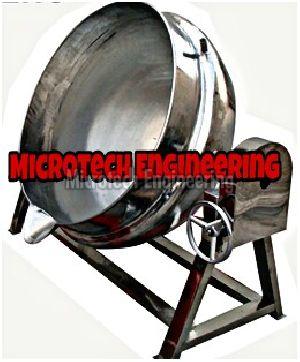

• Tilt-able Boiling Pans having small capacity having volume of up to 500 Liters having hemispherical bottom suitable for Heating with Stem / Hot liquid
• These Pans are provided with jacket for circulation steam / Hot liquid and finally insulated

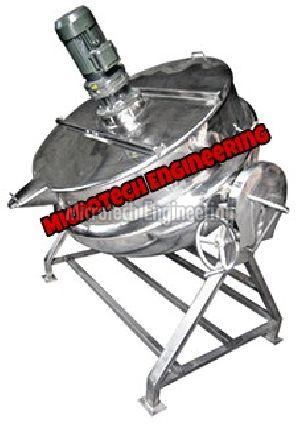

• One can have choice of having these pans with agitator, mixer or scrapper
• Even it is possible to have these pans with two speed agitator cum scrapper moving in opposite directions. provision can be made for two speed mixer
• redesign the Pans/ Kettles to suit individual requirement
• In case of higher capacity the pans shall be fixed type supported on the tubular legs / lugs
• Similar way the kettles can also be supplied with Flat / conical / dished end bottom and top with loose / fixed cover
• In case of kettles the shell is provided with the dimple jacket suitable for circulation of steam / hot / cold water
• The dimple jacket kettles are tested at 6 bar hence one need not use syphon for draining the liquid in the jacket
• These jackets are suitable to work with on line supply of hot / cold water / steam up to a pressure of 4 bar
• However in case above standard designs are not suitable for particular requirement, one can very well ask to

Application

• Food and pharma industry
• Brand - MICROTECH ENGINEERING
